How to use Collision detection G-CODE
Checks a G-code program for places where cutting lines cross or touch, which can damage the part or the machine.
Open the appSettings
Basic input data
| Setting | What you enter | Default |
|---|---|---|
| Upload your file required | EIA, NC, CNC, GCODE file, up to 50 MB | – |
| Width (pixel) required | Number | 1500 |
| Height (pixel) required | Number | 1500 |
What you get
- Download Generated DXF file
- A preview image of the result
Worked example

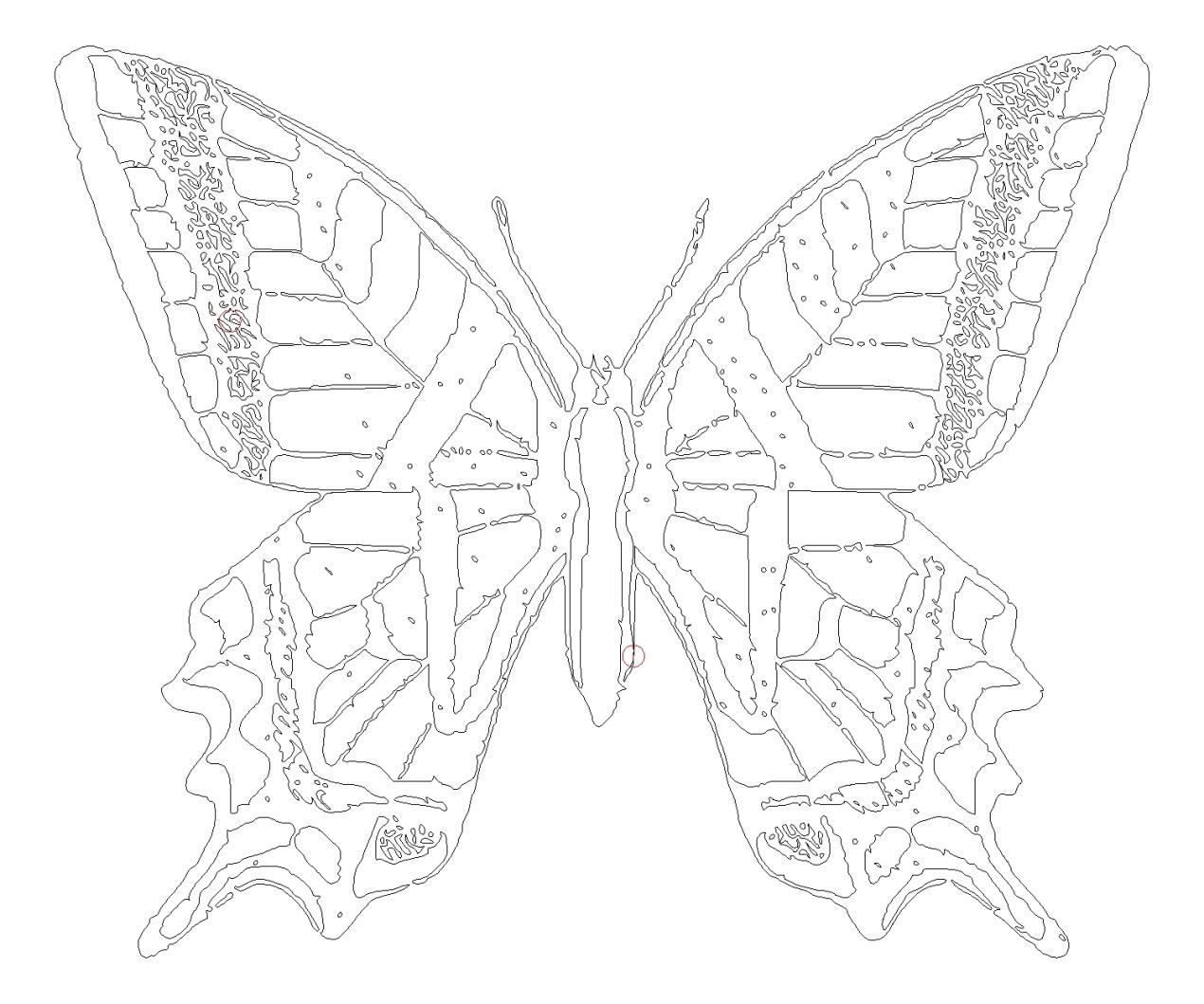

Original file

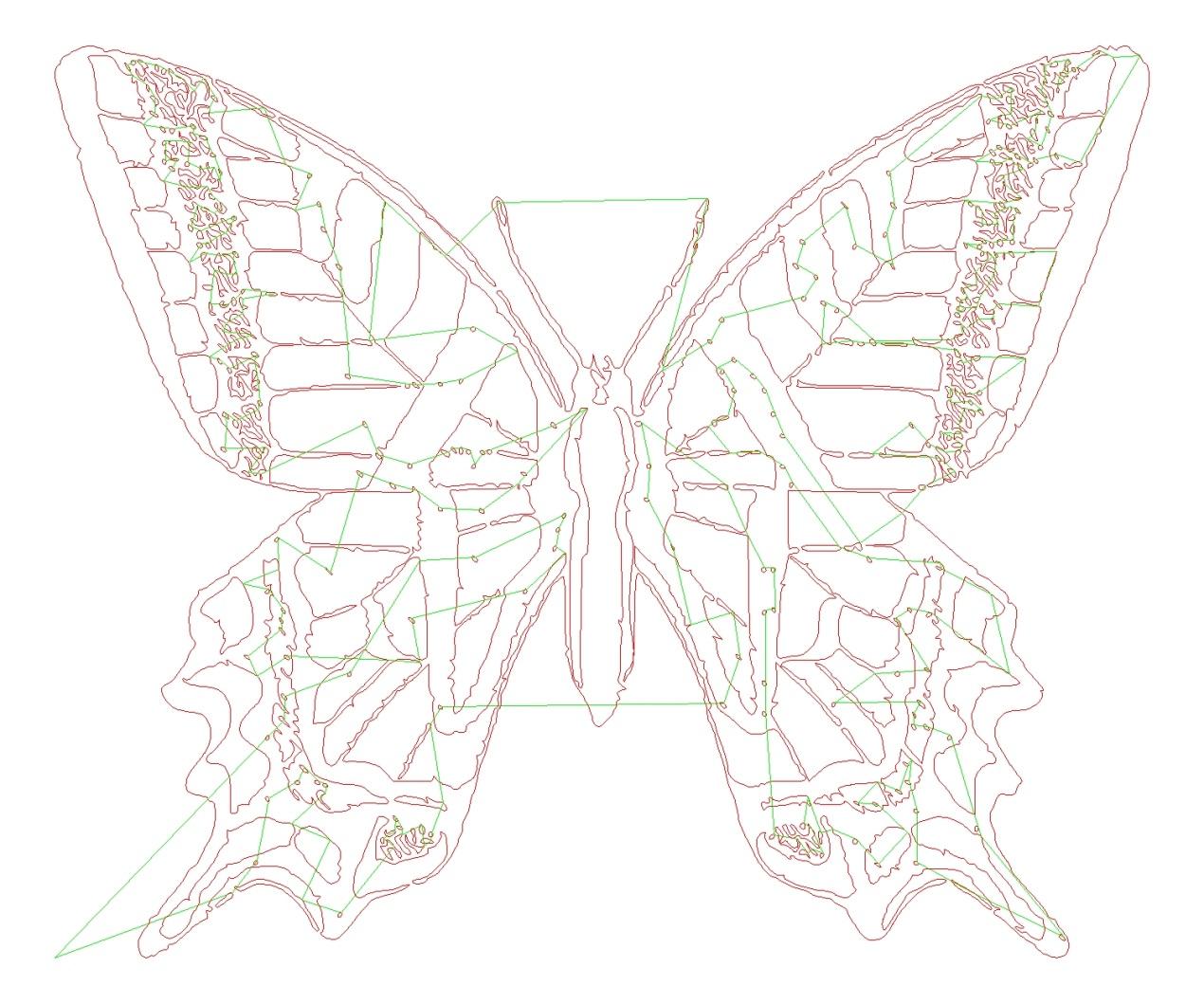

Result
